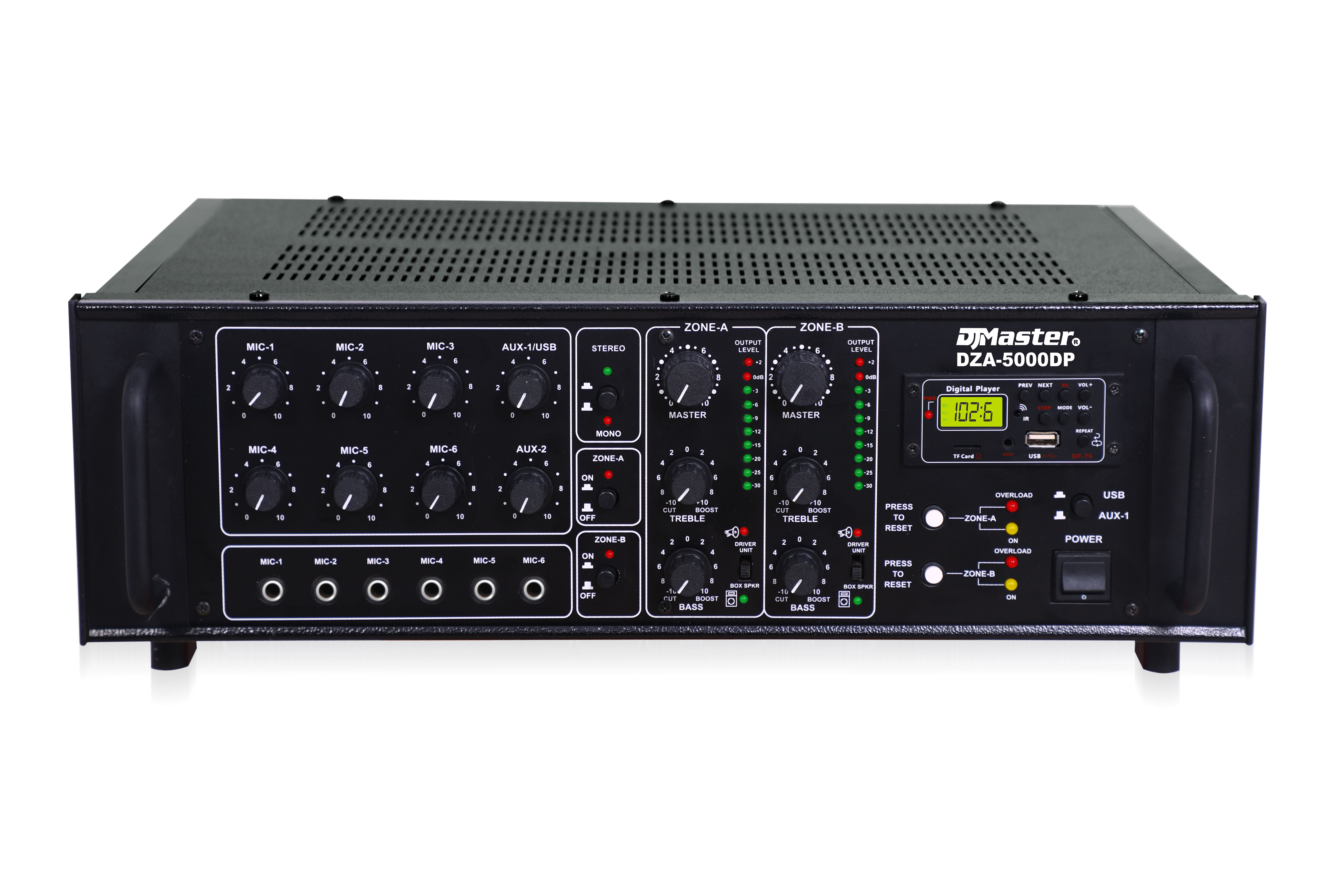

TZA - 5000 DP
MIXER AMPLIFIERS
TWO ZONE PA MIXER AMPLIFIERS
PRODUCT INFO
500 WATTS WITH BUILT-IN DIGITAL PLAYER
TWO ZONE PA MIXER AMPLIFIER
- 6 Mic, 2 Aux Inputs and CD/Stereo input (L&R).
- Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
- Stereo/Mono switch to change ambience of MP3 music player and CD/Stereo music for DJ programmes.
- Separate USB level control provided.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
Technical Specification
Power Output
300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output
Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output
4Ω, 8Ω, 70V & 100V for each zone
Digital Player
MP3 Player with USB, SD and MMC Card Reader
Power Supply
AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption
AC: 700VA DC: 9A
Dimensions
W510 × H172 × D385 mm
Weight
24.2kg
