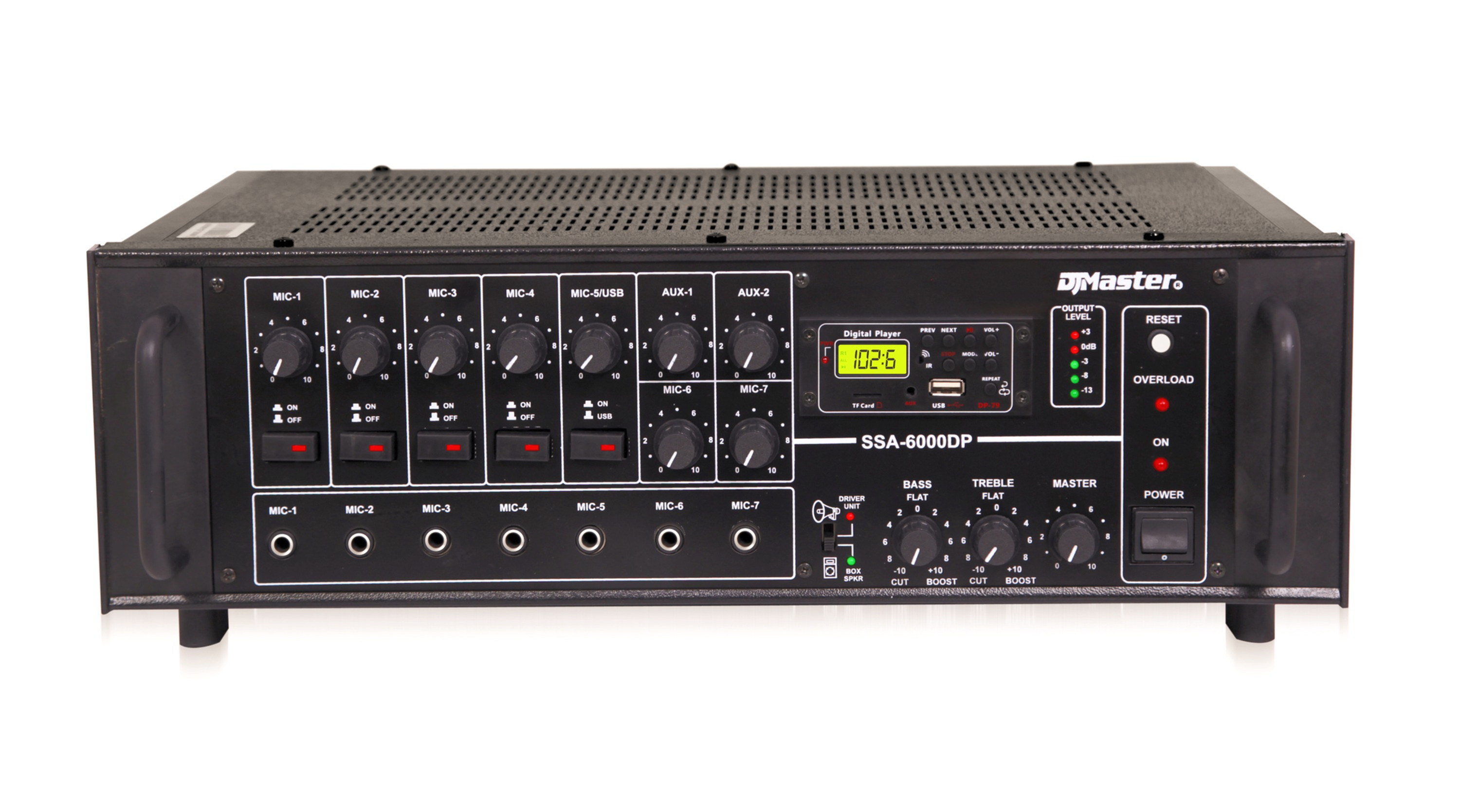

SSA 6000 DP
HIGH WATTAGE PA MIXER AMPLIFIERS
PRODUCT INFO
600 WATTS with Built-in Digital Player
High Wattage PA Mixer Amplifier
- 7 Mic & 2 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader.
- Preamplifier and Line Output for connecting to a Booster Amplifier.
- Line Input for connecting the output from any external mixer or another amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Technical Specification
Power Output
750W Max., 600W RMS at 10% THD 500W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output
Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output
4Ω, 8Ω, 70V & 100V
Digital Player
MP3 Player with USB, SD and MMC Card Reader
Power Supply
AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption
AC: 1000VA DC: 8A
Dimensions
W510 × H172 × D385 mm
Weight
28.0kg
